Handling & Lifting Solution/Winch

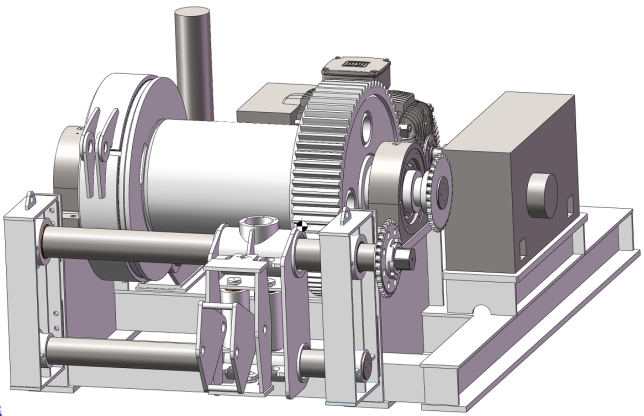

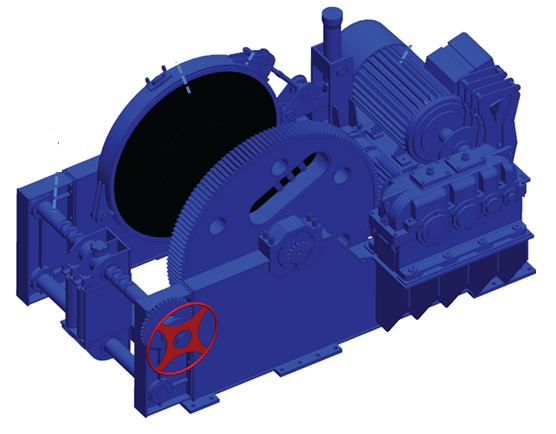

4/8/16 points positioning winch

  • Electrical driven / hydraulic driven
  • Direct pull structure design
  • Container frame design/ distributed structure design
  • Constant tension function optioned
  • Directional spooling/Right angle spooling
  • Timely reading of cable length/speed/tension
Ask for a quote
4/8/16 points positioning winch

Winch

Overview

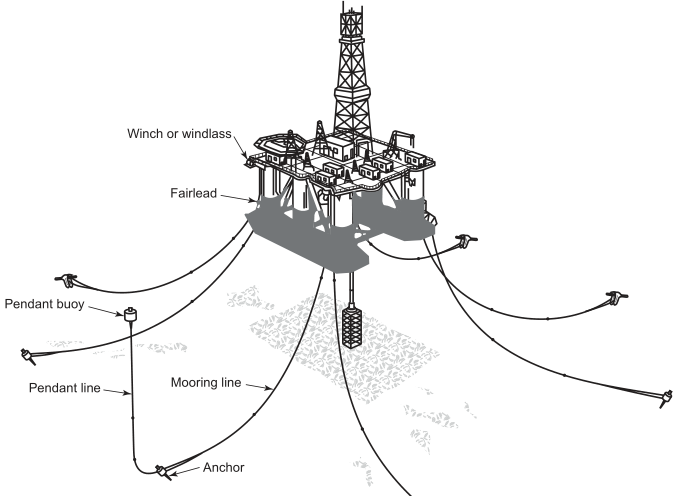

It can be used for vessel or oil platform’s multi-points positioning.

Specifications

Technical data

Technical Specifications
Drum capacity100m~4000m
Cable Typesteel wire cable
Cable diameter20mm~128mm
Working load20 tons ~750 tons
Speed0~60m/min

Handling & Lifting Solution

More Winch

View all →
Geological Winch

Geological Winch
CTD and Oceanographic Winch

CTD and Oceanographic Winch
ROV Winch System

ROV Winch System
Towing Winch

Towing Winch

Discuss 4/8/16 points positioning winch for your project

Tell us about your vessel, water depth and deliverables, and our engineers will recommend a configuration.

Ask for a quote Contact us
