Integrated Heavy-duty ROV LARS
Integrated LARS for heavy-duty ROV
- 8 t safe working load — Winch working load of 8 t maximum ROV load, with 15 t launch and recovery load at the inner layer and 18 t static brake load.
- Electric variable frequency drive — 2500 m cable storage capacity for 30 mm umbilical cable.
- Sliding-type A-frame and anti-sway unit — Outboard outreach greater than 4.3 m, inboard span greater than 2.0 m, 15 t outboard supporting load in ROV operation.
- ROV docking assembly — Sheave diameter about 1.1 m, rotation angle ±130°, load capacity about 10 t.
LARS
Overview

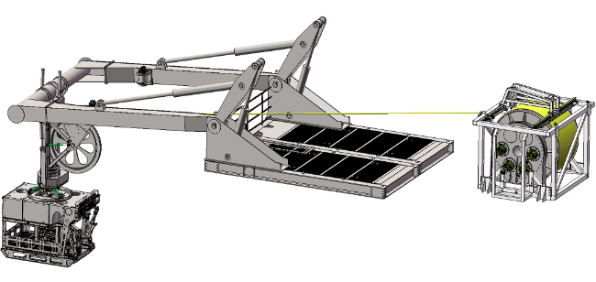

The Integrated Heavy-Duty ROV LARS launches and recovers ROVs of up to 8 t. Winch, A-frame and docking head are supplied as one integrated system and craned onto the working deck complete.
The winch has an electric variable frequency drive, a launch and recovery load of 15 t at the inner layer and a static brake load of 18 t. It stores 2500 m of 30 mm umbilical cable.
The A-frame and anti-sway unit use a sliding-type design, with an 8 t safe working load and a 15 t outboard supporting load during ROV operation. Outboard outreach is greater than 4.3 m, inboard span greater than 2.0 m, and the maximum height from the sheave down to the deck is ≥4.6 m. The ROV docking assembly has a sheave diameter of about 1.1 m, a rotation angle of ±130° and a load capacity of about 10 t. The system is designed and supplied by OCEAN PHYSICS.
Specifications
Technical data
| Item | Value |
|---|---|
| Winch | |
| Drive | Electric variable frequency drive |
| Working load (max. ROV load) | 8 t |
| Launch and recovery load | 15 t at inner layer |
| Static brake load | 18 t |
| Cable storage capacity | 2500 m |
| Applicable cable diameter | 30 mm |
| A-frame and docking head | |
| Design | Sliding type, A-frame and anti-sway unit |
| Safe working load | 8 t |
| Outboard supporting load (ROV operation) | 15 t |
| Max. height from sheave down to deck | ≥4.6 m |
| Outboard outreach | greater than 4.3 m |
| Inboard span | greater than 2.0 m |
| Sheave diameter of ROV docking assembly | ~1.1 m |
| Rotation angle of ROV docking assembly | ±130° |
| Load capacity of ROV docking assembly | ~10 t |
| Weight | — |
| Dimensions | — |
| Control | Local console / remote control |
| Optional equipment | Active heave compensation |
| Vessel application | Research and engineering vessels |
