CTD and Oceanographic Winch

Winch for CTD and water sampler casts

Standard CTD cable sizes — 8.03 mm or 9.53 mm metal-armored or fiber-armored CTD cable, 100–12000 m capacity.
Electric or hydraulic drive — Direct-pull or traction configuration in a single frame-integrated unit.
Heave compensation available — Optional heave compensation device and active cable tensioning device for sampling in a seaway.
Independent right-angle level wind — PLC automatic spooling, angle-sensor follow-up spooling and an emergency spooling mode.

Winch

Overview

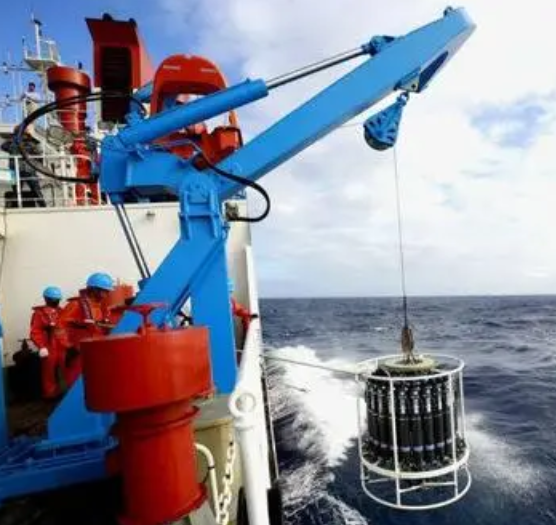

The CTD / Hydrographic Winch is an oceanographic winch that launches and recovers CTD instruments and single-bottle or multi-bottle water samplers, with cable capacity for casts to full ocean depth.

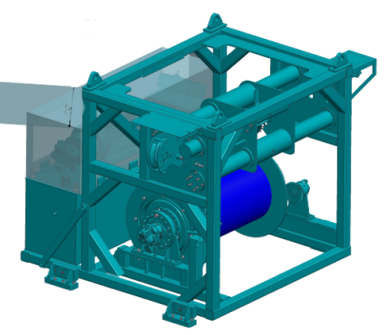

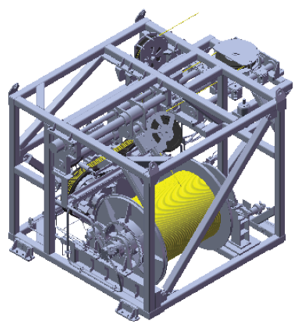

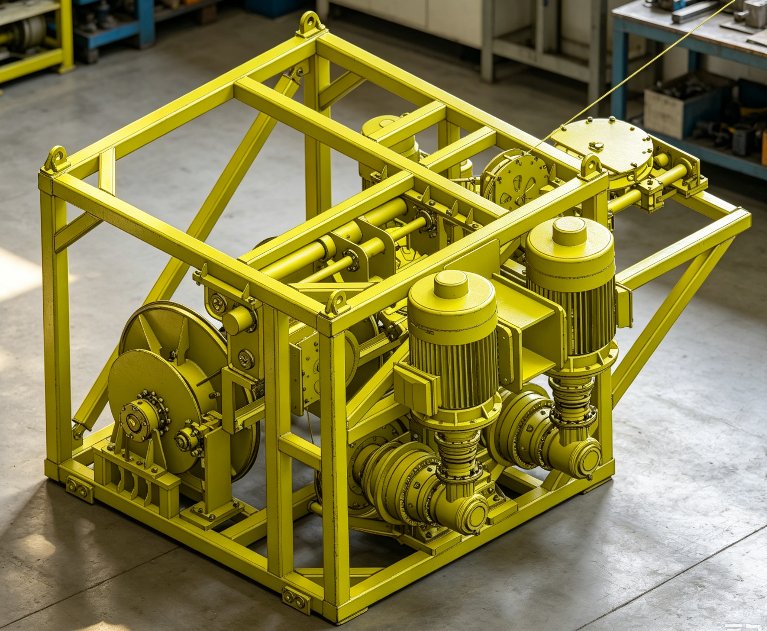

It uses standard CTD cable of 8.03 mm or 9.53 mm diameter, either metal-armored or fiber-armored, and is available with electric or hydraulic drive in direct-pull or traction configuration. The winch is built as a frame-integrated unit, with cable capacity from 100 m to 12000 m and working load from 0.5 t to 6 t.

An independent right-angle level wind provides PLC automatic spooling, angle-sensor follow-up spooling and an emergency spooling mode. An active cable tensioning device and a heave compensation device are available as options. The winch is designed and supplied by OCEAN PHYSICS and pairs with the CTD and sound velocity sensors in the Marine Survey range.

Specifications

Technical data

Item	Value
Working load	0.5–6 t
Max. cable capacity	100–12000 m
Cable type	Metal-armored CTD cable / fiber-armored CTD cable
Cable diameter	8.03 mm / 9.53 mm
Line speed	—
Drive	Electric / hydraulic; direct pull or traction
Power supply	—
Weight	—
Dimensions	—
Material (frame / drum)	—
Control / level wind	Independent right-angle level wind; PLC automatic, angle-sensor follow-up and emergency spooling
Configuration	Frame-integrated
Options	Active cable tensioning device; heave compensation device
Platform / mounting	—
