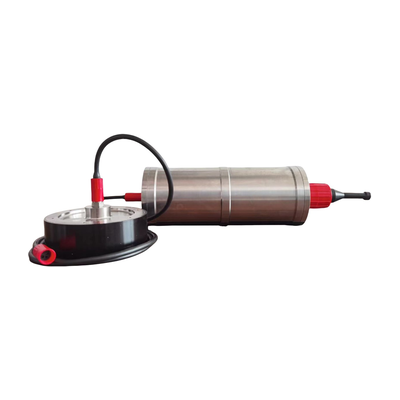

GeoScope 6100 Deep‑water Parametric SBP

100 kHz parametric SBP · rated 6,000 m

Rated to 6,000 m — Pressure housings built and validated with high redundancy for reliable operation at full working depth.
Up to 30 m penetration — Mature parametric technology resolves complex deep-sea sediment structure.
Narrow beam, no side lobes — A ~5.5° × 5.5° primary beam suppresses clutter and delivers ≤5 cm range resolution.
Split layout, easier integration — A 5 kg transducer and 15 kg electronics bottle mount separately, easing space and trim on deep-diving vehicles.

Ask for a quote Datasheet (PDF)

Overview Technical Specifications Case Study Download

GeoScope 6100 is a parametric sub-bottom profiler rated to 6,000 m for deep-sea vehicles. Built on nonlinear acoustics, it transmits at a 100 kHz primary frequency and generates 5 – 20 kHz secondary frequencies with strong sediment penetration.

Transducer and electronics bottle are separate pressure-rated units, designed for integration on crewed submersibles (HOV), work-class ROVs and long-endurance AUVs. It holds range resolution at ≤5 cm while penetrating up to 30 m into the seabed — a profiler for deep-ocean science and deep-sea geological mapping.

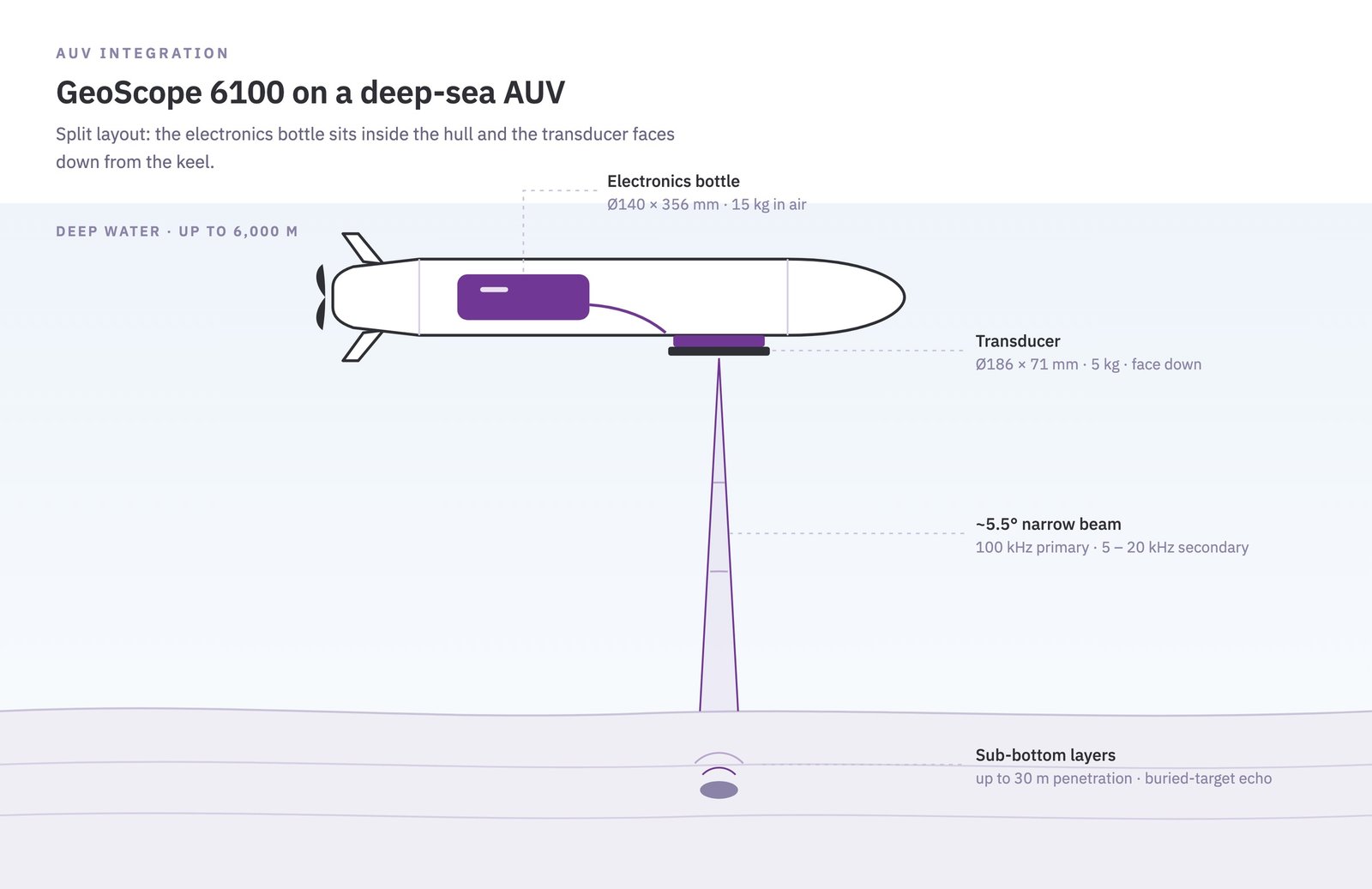

GeoScope 6100 integrated on an AUV (schematic)

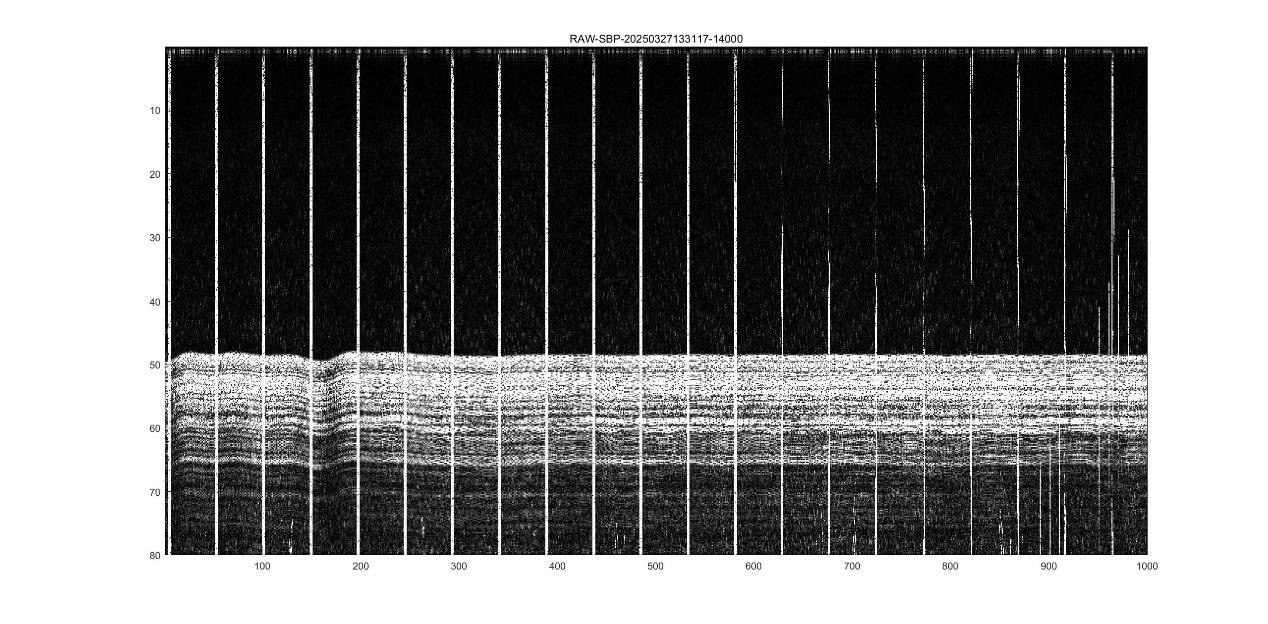

Raw sub-bottom profile recorded from an AUV

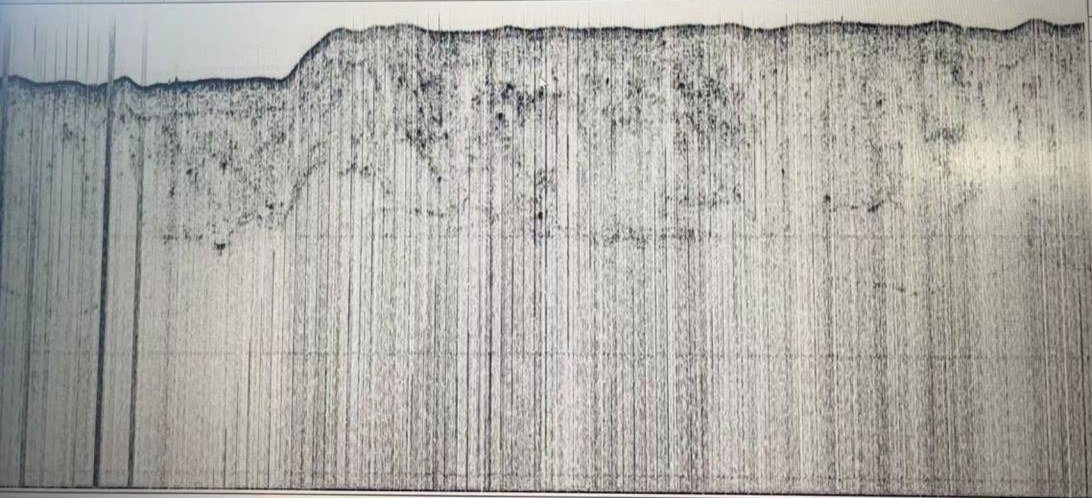

Sub-bottom profile recorded from a crewed submersible (HOV)

Applications

Deep-sea geological and geophysical survey and ocean science expeditions

Deep-water pipeline routing and trans-ocean cable projects

Deep-sea sediment stratigraphy and subsidence studies

Shoal checks and concealed-hazard search on deep-water routes

Engineering integration on HOVs and deep-sea AUVs / ROVs

Technical Specifications
Primary Frequency	90 – 120 kHz
Secondary Frequency	5 – 20 kHz
Pulse Length	0.04 – 1 ms
Primary Beamwidth	~5.5° × 5.5°
Source Level @ Primary Frequency	≥238 dB/μPa@1m 100 kHz
Source Level @ Secondary Frequency	≥194 dB/μPa@1m 15 kHz
Dynamic Range	≥110 dB
Range Resolution	≤5 cm
Sediment Penetration	≤30 m (subject to sediment type and noise)
Operating Range	≤200 m (water depth)
Motion Compensation	Heave correction and compensation
Physical Specifications
Power Consumption	75 W max. average
Power Supply	220 VAC 50 Hz ±5% via adapter, or 24 VDC input
Communication	Ethernet, PC control
Transducer	Ø186 × 71 mm, 5 kg in air
Electronics Bottle	Ø140 × 356 mm, 15 kg in air
Max. Working Depth	6,000 m
Software	SPAS acquisition and post-processing as standard; compatible with third-party software such as SonarWiz

File name File type File size Download

GeoScope 6100 Deep-water Parametric SBP Datasheet

pdf 0.66MB
