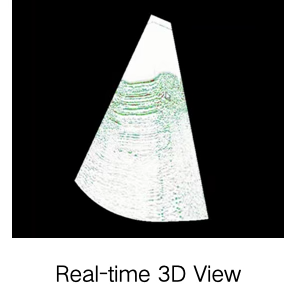

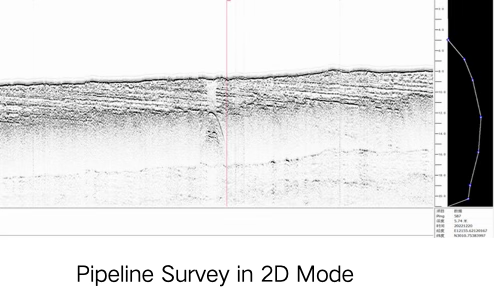

Based on parametric acoustic principle, GeoInsight 100 features not only single beam sub-bottom profiling (bathymetry and 2D sediment waterfall), but also phased multibeam for wideband survey. The user can set up gain compensation, filter tracking, secondary frequency profiling in its standard software. 2D sediment data can be mosaicked into 3D seabed view for quick subsea site investigation and buried target inspection.
The whole system is manufactured in China with competitive specifications in the market. With wide selection of secondary frequency and short wavelength, GeoInsight can inspect small buried target under seabed. The 3D imagery makes it ideal for quick offshore site survey and analysis.
| Technical Specifications | |
|---|---|
| Primary Frequency | 85 – 115 kHz |
| Pulse Length | 0.05 – 1 ms |
| Beamwidth @ Primary Frequency | 2.5° × 8° |
| Source Level @ Primary Frequency | better than 238 dB/μPa @ 1m (100 kHz) |
| Secondary Frequency | 5 – 20 kHz |
| Beamwidth @ Secondary Frequency | approx. 3° × 10° |
| Source Level @ Secondary Frequency | better than 194 dB/μPa @ 1m (10 kHz) |
| Receiver Bandwidth | 5 – 20 kHz |
| Acquisition Speed | 128 ksps @ 24 bit |
| Dynamic Range | 110 dB |
| Ping Rate | max 40 pings/s |
| Range Resolution | 0.05 m |
| Sediment Penetration | up to 40 m, depending on sediment type and ambient noise |
| Water Depth Range | up to 500 m bathymetry range |
| Phased Array Transmission | max ±23°, up to 93 beams |
| Channel of Receiver | no less than 2 channels (primary & secondary) |
| Heave/Roll/Pitch Compensation | heave and roll |
| Physical Specifications | |
| Power Consumption | less than 300 W (equipment level) |
| Power Supply | 220 VAC |
| Communication | Ethernet, PC control |
| External Sensors | GPS, IMU, external trigger |
| Dimension and Weight of Transducer | 370 × 370 × 110 mm, 35 kg incl. 20 m cable |
| Dimension and Weight of Topside Unit | 610 × 740 × 611 mm, 53.9 kg (rotomoulded case) |
