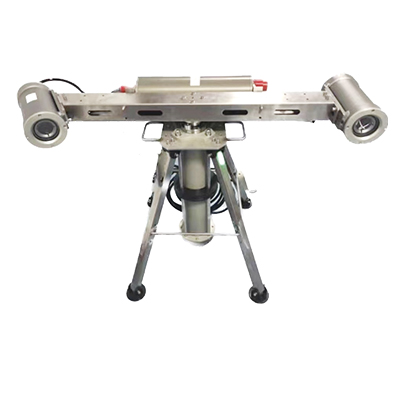

The LaserScope 3D Subsea Laser Scanning system developed by Ocean Physics is based on the principle of structured light 3D imaging, and can be used to scan seafloor topography or underwater structures at close range by using a tripod for bottom observation or an integrated ROV.

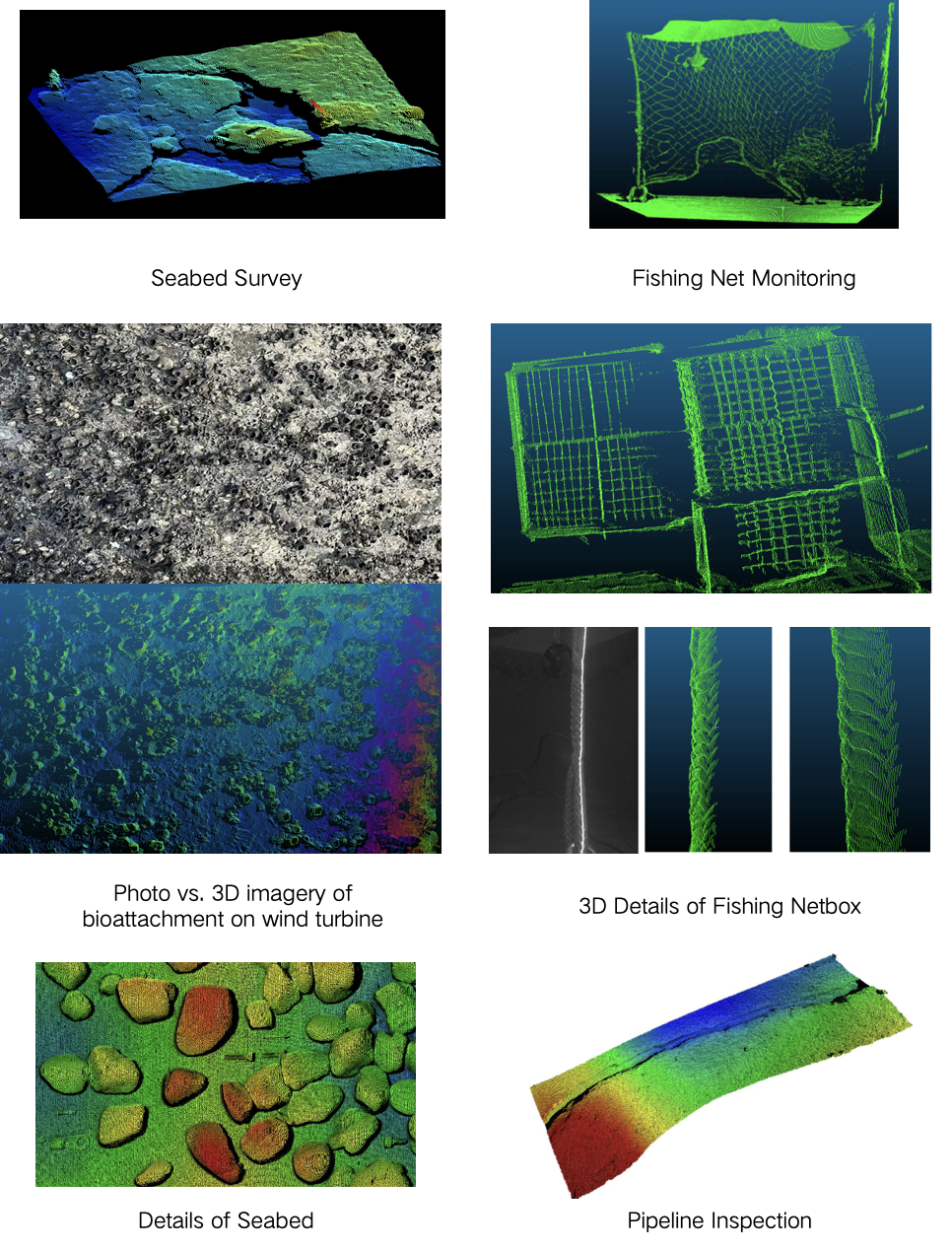

The system can acquire video images carrying 3D information of the target, pre-process the video images, and perform algorithms such as light bar extraction, processing and point cloud conversion to obtain 3D point cloud data of the target surface. At present, it has been applied to a number of users, and has completed the underwater field scanning of different landforms such as underwater flat sandy slope area, large carbonate crusted rocky area and flat sedimentation area.
Application:
LaserScope integrated on the skid of one Working Class ROV
Specifications | LS-5 | LS-10 |
Scan Range | 0.5-5m | 1.5-10m |
Points per line | 2048 | 2048 |
Angle of laser line | 50° | 50° |
X-axis Resolution( AlongTrack) | 1.7mm@0.25 knots、4mm@0.5 knots、15mm@1knot | |
Y-axis Resolution( AcrossTrack) | 0.5mm@0.5m 1mm@1.5m 2mm@2.5m | 2mm@3m 3mm@5m 5mm@10m |
Z-axis( Vertical) | 0.7mm@0.5m 3mm@1.5m 5mm@2.5m | 0.5mm@3m 1mm@5m 2mm@10m |
Laser | 0-700mW adjustable | |
Wavelength | 450nm | |
Laser Class | 3B | |
Power Input | 9~36VDC/24W | |
Power Consumption | Less than 35W | |
Communication | Gigabit Ethernet, TCP/IP | |
Depth Rating | 400m | 3000m (6000m optional) |
Weight | 5.5 kg in air 2.5kg in water | 12 kg in air 7.5 kg in water |
Data output | Real-time video image & xyz point cloud | |
Adjustable parameters | The system provides 8 adjustable parameters to fully adapt to different underwater working conditions. | |
System Configuration | The system includes camera, laser, underwater Pan & Tilt, access to external calls to C++ API to raw data | |
Pan & Tilt | Torque: 40Nm, Rotation Angle: 360°, Angular Resolution: 0.045°, Power Consumption: 7W, Depth Rating: 400/3000/6000 metres | |
